  • Brand Name: G-NiceRF
  • Model Number: SV612
  • Frequency range:: 433/470/868/915 MHz (Customizable240-930 MHZ)
  • Interface:: TTL/RS232/RS485
  • Sensitivity: : -121 dBm
  • Max output power: : 100 mW /+20dBm
  • Working voltage: : 3.3 ~ 7.0 V
  • Working temperature: : -40 ~ +85 °C
  • Weight: : 45g
  • Air Data Rate: : 1200 ~ 115200 bps
  • Series Data Rate:: 1200 ~ 115200 bps
Product Description

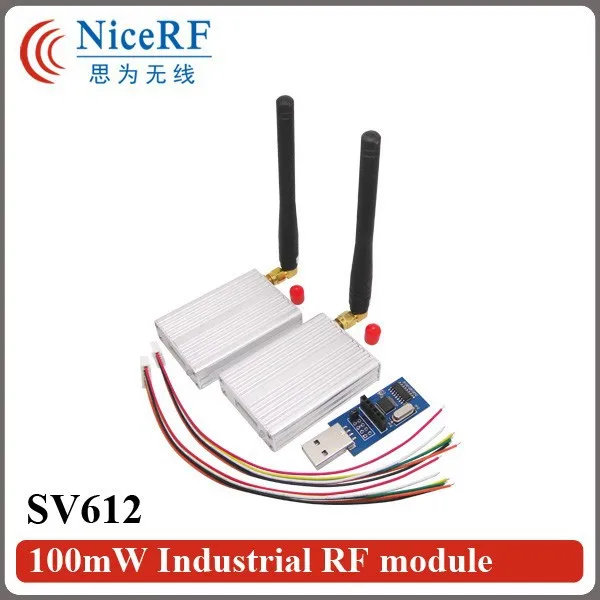

2pcs 433MHz TTL Interface 100mW Industrial RF module SV612+2pcsRubber antenna + 1pcs USB bridge board



Descriptions:

SV612 is highly integrated, multi-channels radio data transceiver module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 100mW output power to ensure longer RF range and high link quality. SV612 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make SV612 wildly deployed in many fields and applications.



Feature

  • 433/470/868/915 MHz   (Customizable240-930 MHZ)
  • Industrial class
  • 40 channels
  • 4 bytes Net ID & 2 bytes Node ID
  • Series Data Rate:1200 ~ 115200 bps
  • Air Data Rate:1200 ~ 115200 bps
  • GFSK modulation
  • RSSI
  • Interface:TTL/RS232/RS485
  • Antenna matching automatically
  • Bi-directional & Half duplex
  • Sensitivity: -121 dBm
  • Max output powe:100 mW /+20dB
  • Working voltage:3.3 ~ 7.0 V
  • Working temperature: -40 ~ +85 °C
  • Weight:45g
  • Parameters save automatically




Application
  • Remote control telemetry
  • Security system
  • Industrial data acquisition
  • Home automation
  • Wireless data communication
  • Access system
  • Robot control
  • Wireless PC peripherals

SV Series Application



Application circuit

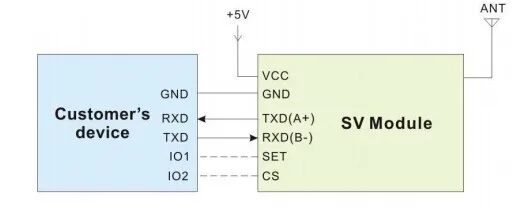

The typical schematic circuit is as below:
Note:The ground pin of the module and device should be connected together.

612-Application circuit

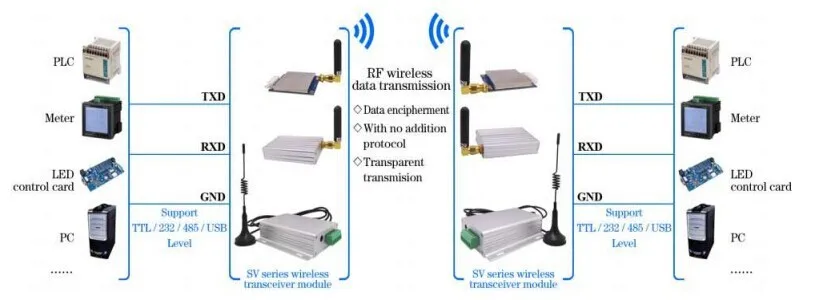

Typical application:

sv612 Typical application

Block Diagram
sv612 4. Block Diagram




Electrical Characteristics

sv612 5. Electrical Characteristics

Mechanical dimension:



Mechanical dimension




Product show:

SV612-5
SV612-1
SV612-100mW Industrial RF module-12



order list
2pcs SV612 modules
2pcs connecting line
2pcs straight antenna
1piece USB bridge board



Pin definition:

sv612 Pin definition

sv612







Accessories

Antenna
