  • Model Number: SV650-915-TTL
  • Brand Name: G-NiceRF
Product Description

We are professional manufcturer for "wireless data transmission module" products, so the price is the most competitive and quality can be promised!The more you buy, the lower the price will be! For wholesale business,please feel free to email us for best quotation!OEM/ODM service is OK! we also do drop shipping wordwide!

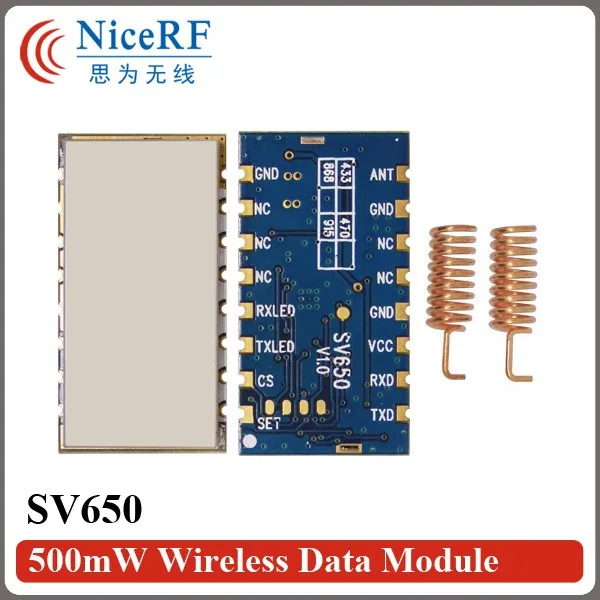

2pcs small size Si4432 500mW 3km SV650 TTL interface 915MHz embedded wireless module with 2pcs spring antenna



Descriptions:

SV650 is highly-integrated RF module,which adopts high performance Si4432 from Silicon Labs.It has 2 optional Interface (TTL,485). SV650 has high sensitivity and 100mW output power to achieve long RF range and reliable RF communication.SV650 comes with many parameters which are configurable,such as:frequency,data rate,output power,Net ID,Node ID.Users can configure the parameters through PC or customer\' own device.The features of small size,long distance,wide working voltage and simple parameters configuration make SV650 wildly used in many fields



Specifications:

  • Product: SV650 module
  • Feature: Long-distance wireless transceiver module
  • Interface: TTL/rs485 interface
  • TX Power: 20dBm (increased to 27dBm)
  • TX Current: 350mA
  • RX Current: 25mA @ TTL/ 34mA @ 485
  • Sleep Current: <5uA
  • Receiving Sensitivity:-121dbm
  • Operating Temperature:-40°C~+85°C
  • Outline Dimensions:38mm×20mm×4mm



Application:

  • Remote telemetry
  • Auto meter reading
  • Security systems
  • Data logger
  • Wireless data communication
  • Building residential automation and security
  • Healthy monitoring
  • Wireless PC peripherals
  • Access Control System
  • Robot control
SV Series Application



Parameters

Electrical Characteristics

Pictures:

SV650-500mW wireless data module kit-5

SV650-433MHz-TTL-500mW

SV650-433 470 868 915MHz


Package include:
  • 2pcs SV650 module in 915 MHz and RS485 interface
  • 2pcs Rob antenna
  • 1pece RS485 USB bridge board



Schematic

               SV650 Schematic


Pinout



SV650 Pinout







Accessories:

Antenna: The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.

3

USB Bridge board: The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC. There are 2 types of USB Bridge, which are SU108-TTL, SU108 - 485. SU108 -TTL is for TTL Interface, SU108 - 485 is for 485 Interface:

4
