Item specifics
  • Model Number: SV610
  • Brand Name: G-NiceRF
  • Voltage: 2.8 ~ 6.0 V
  • Temperature: -40 ~ +85 °C
  • frequency: 433/470/868/915 MHz (Customizable 240-930 MHZ)
  • Interface: : TTL
  • 40 channels : 40
  • node ID: 2 bytes
  • net ID: 4 bytes
  • Modulation: GFSK
  • Max output power: 100 mW
  • Sensitivity: : -121 dBm
Product Description

We are professional factory for wireless digital transmission products, so the price is the most competitive and quality can be promised!The more you buy, the lower the price will be! For wholesale business,please feel free to email us for best quotation!OEM/ODM service is OK! we also do drop shipping wordwide!

Pls leave a message to confirm which frequency band (433/470/868/915mhz) you need when you place order with us! Our default shipping frequency is 433MHz,we will send 433MHz for you if we havent received any frequency requirments, hope you can understand us! thanks a lot!

16pcs SV610 100mW TTL interface 433MHz Wireless RF Module + 16pcs copper spring antenna+1pcs TTL USB Bridge board

Description:
SV610 is highly integrated radio data transceiver module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 100mW output power to ensure longer RF range and high link quality. SV610 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make SV611 wildly deployed in many fields and applications.


Feature:
1400 meters transmission distance @ 2.4K rate when
Working frequency options:433/470/868/915 MHz
40 channels
4 bytes network ID
2 bytes node ID
Multiple data transfer rate
RSSI output field strength
GFSK modulation mode
automatically antenna matching and bi-directional switch control
Support Serial port parameter setting
sensitivity up to -121 dBm
Maximum output power: 100 mW
Operating Voltage 2.8 ~ 6.0 V


Application:

Remote telemetry
Auto meter reading
Security Systems
Data logger
home automation telemetry
personal data records
wireless data communications
building automation and security
Healthy Monitoring
wireless PC peripherals

Access Control System
robot control

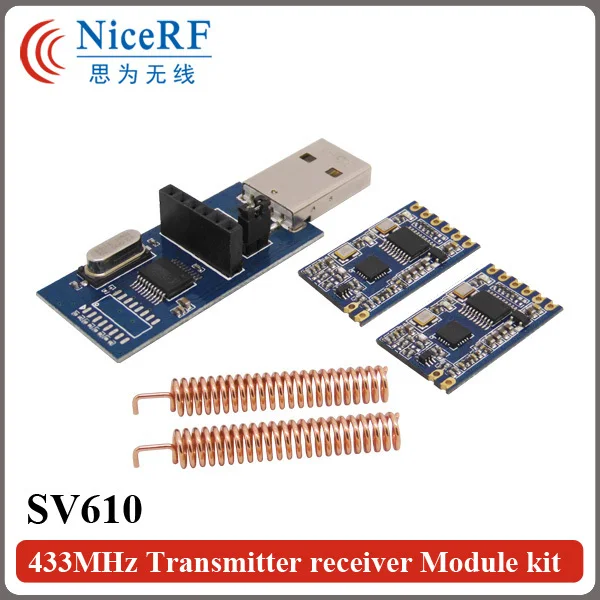

Product Picture:

SV610-SW433-TH32SV610-SW433-TH32-2
SV610+USB Bridge Board+SW433-TH32(Copper plating antenna)


Package include:
16pcs SV610 TTL 433MHz modules,
16pcs Spring antenna (copper or gold-plated spring antenna both ok),
1pcs TTL USB Brigde board


Parameter:
sv610

610

610-1



Accessories:

Antenna: It is an important part of communication system. Its performance directly affect the indicators of      communication system.This module SV610 requires the  antenna impedance as 50 ohm. To make the module in the best working status, we recommend that users use our company\'s spring antenna!

th32



USB Converter Board: Modules need to match relevant parameter,transmit data...etc, with PC.(you can choose configuration mode by wire jumper). We have the matching USB connector and TTL level switch board for users to conveniently communicate with PC.
